* Enclosure material : Aluminium alloy ZL102;
* Transparent cover material : PC, > 7J
* Ex mark : Ex de IIC T6 Gb;Ex tD A21 IP66 T80°C
* Certificate: TR CU
Description

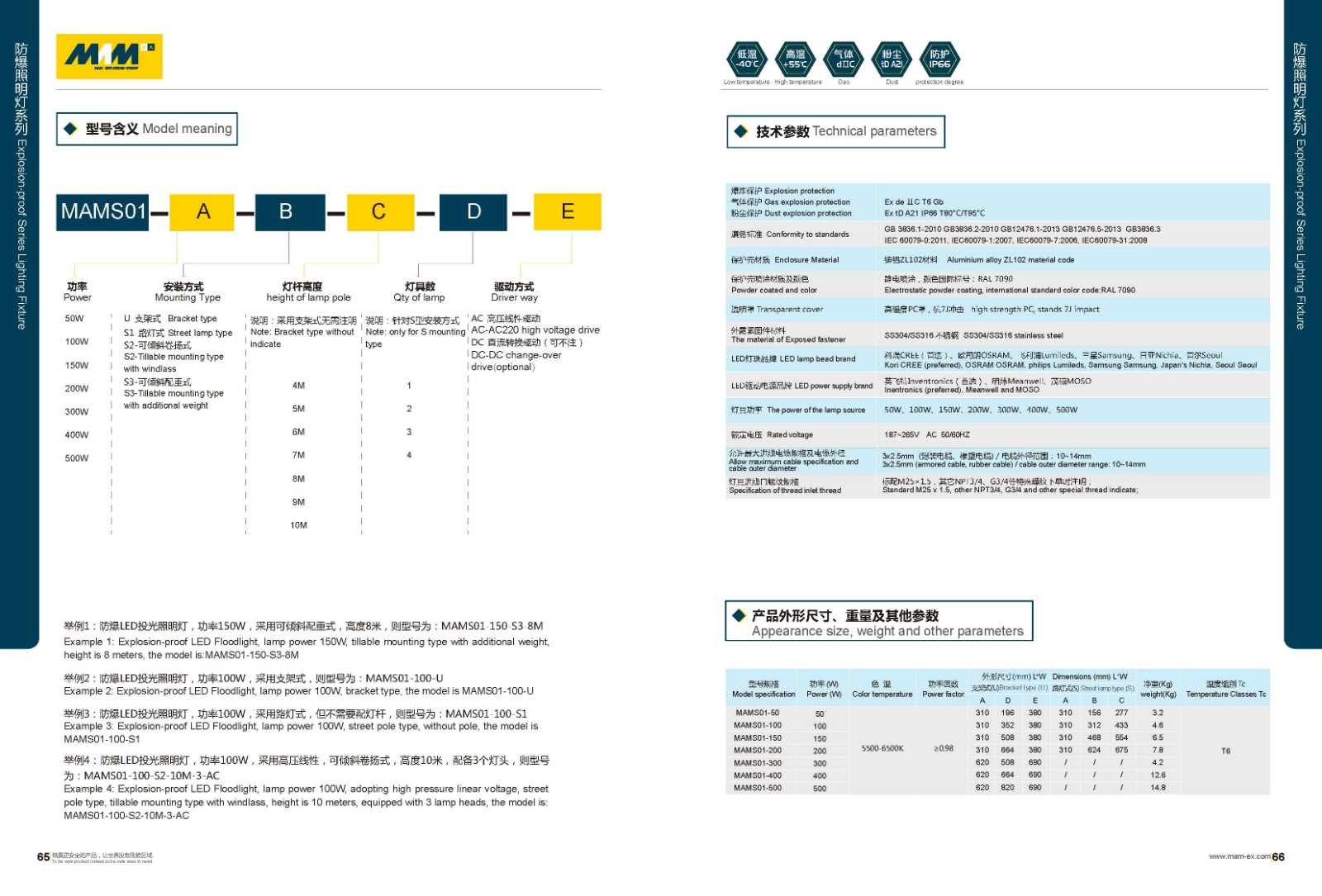

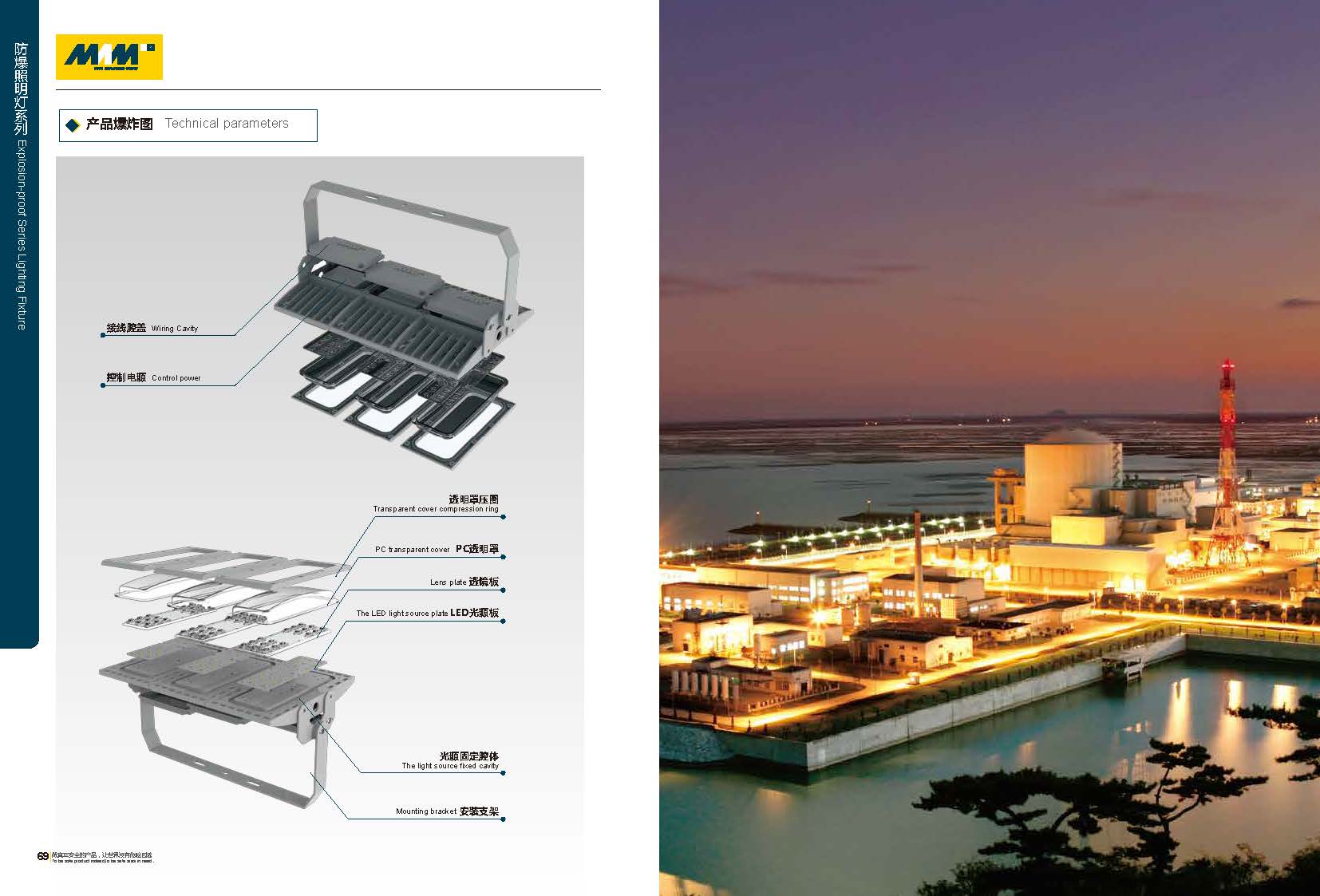

Explosion-proof LED Floodlight MAMS01
* Power : 50W, 100W, 150W, 200W, 300W, 400W, 500W;

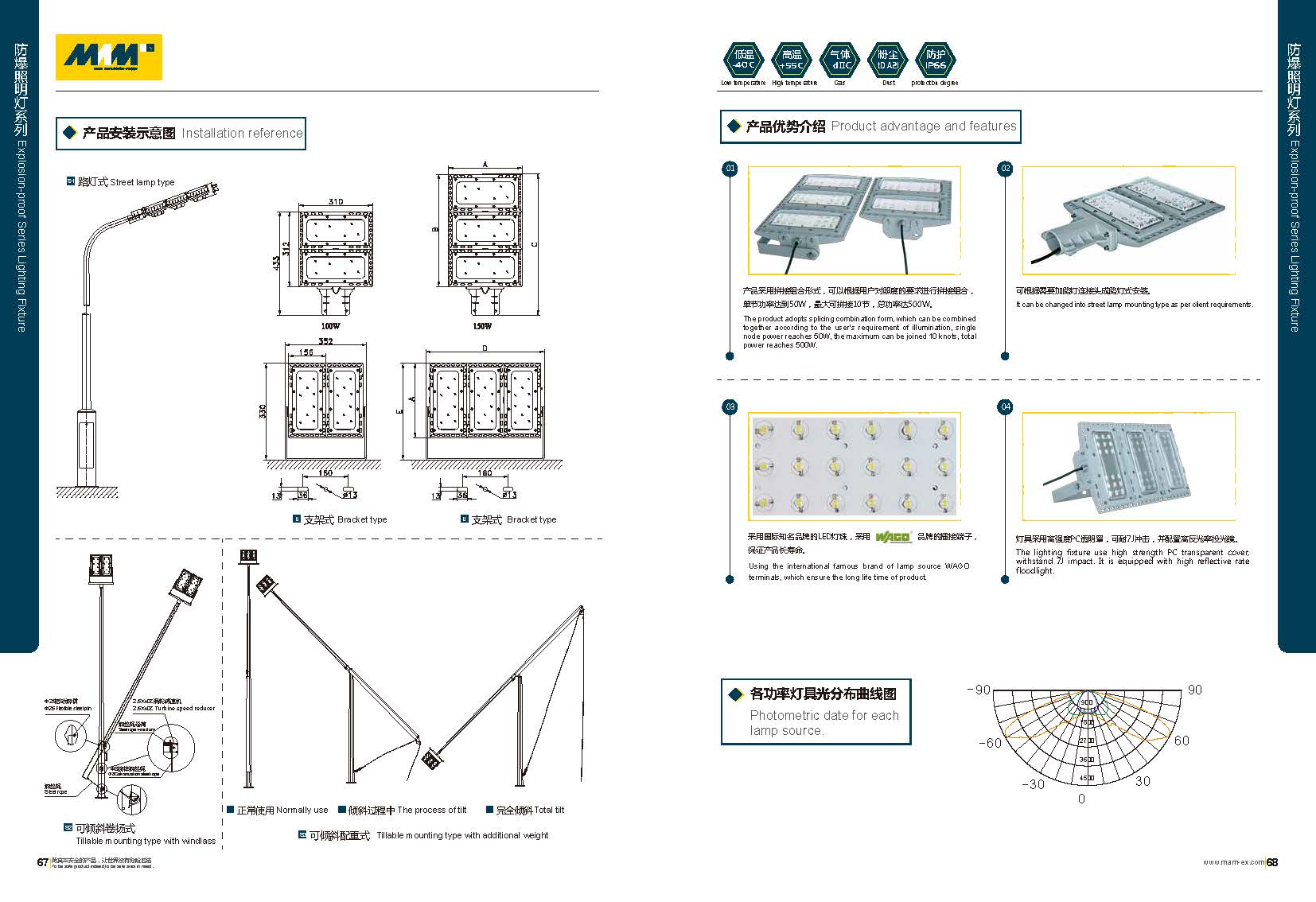

* Mounting type : Bracket type, Street type;
* Cable entries : Steel pipe or Cable entry(NPT3/4, M25*1.5, G3/4)

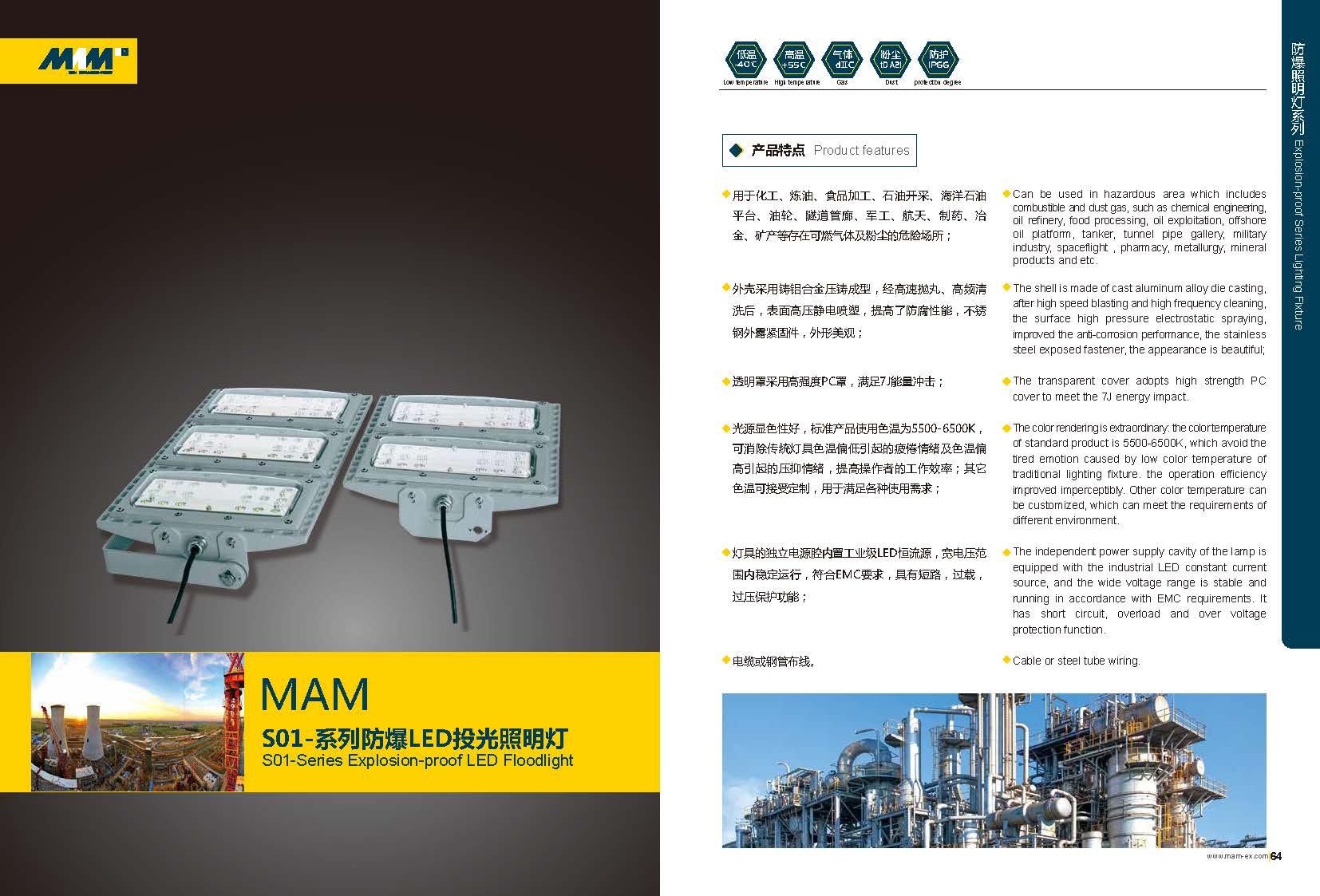

* Can be used in hazardous area which includes combustible and dust gas, such as chemical engineering, oil refinery, food processing, oil exploitation, offshore oil platform, tanker, tunnel pipe gallery, military industry, spaceflight , pharmacy, metallurgy, mineral products and etc.
* The shell is made of cast aluminum alloy die casting, after high speed blasting and high frequency cleaning, the surface high pressure electrostatic spraying, improved the anti-corrosion performance, the stainless steel exposed fastener, the appearance is beautiful;
* The independent power supply cavity of the lamp is equipped with the industrial LED constant current source, and the wide voltage range is stable and running in accordance with EMC requirements. It has short circuit, overload and over voltage protection function.
* Cable or steel tube wiring.
