* Enclosure material : Aluminium alloy ZL102;
* Transparent cover material : Toughened glass , > 4J
* Ex mark : Ex db IIC T6...T5 Gb; Ex tb IIIC T80℃...T95℃ Db IP66
* Lamp source : LED bulb and Energy saving lamp≤65W
* Certificate: ATEX, IECEx, TR CU
Description

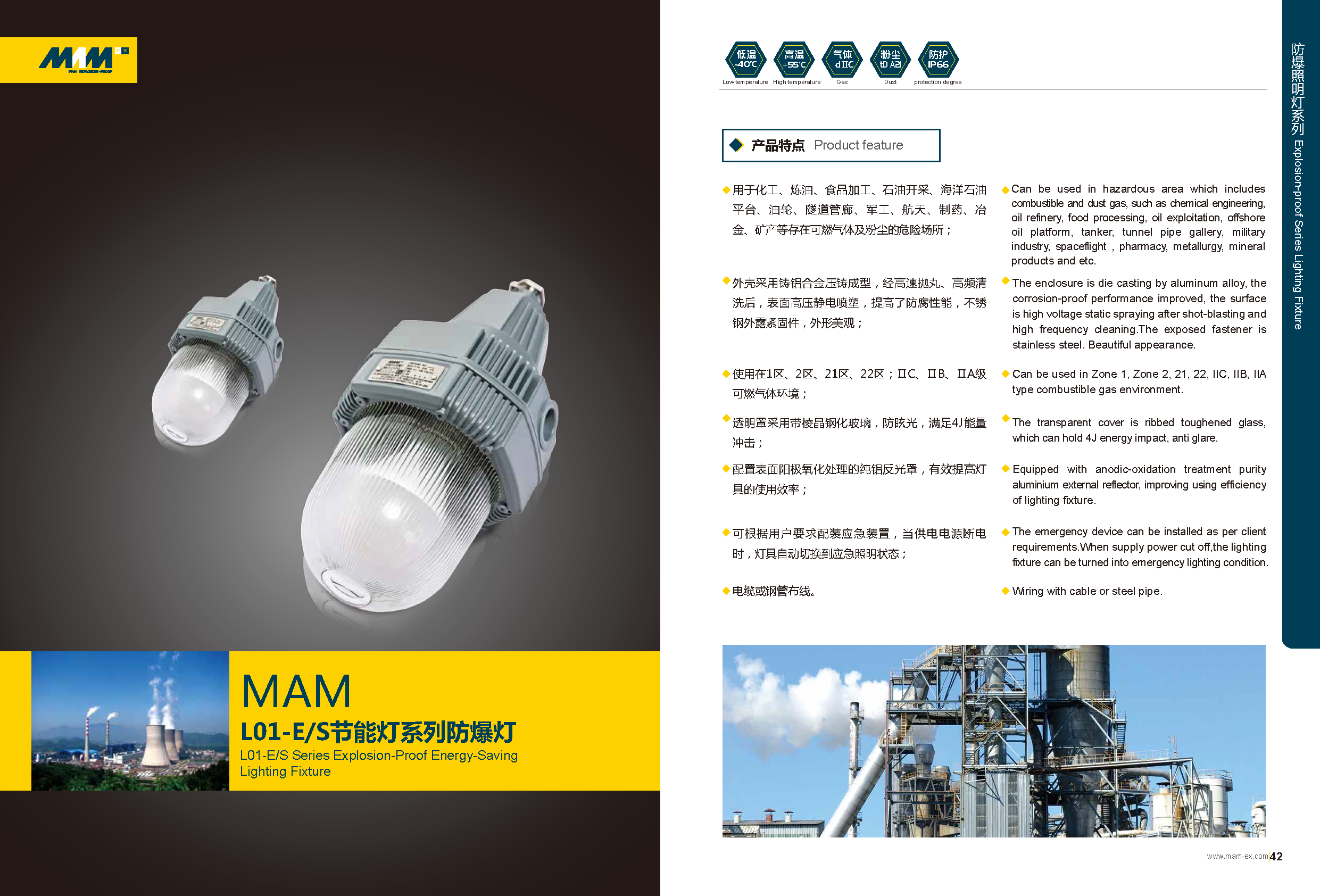

Explosion-proof Light fittings MAML-01-S
* The enclosure is die casting by aluminum alloy, the corrosion-proof performance improved, the surface is high voltage static spraying after shot-blasting and high frequency cleaning.The exposed fastener is stainless steel. Beautiful appearance.
*Wiring with cable or steel pipe.
* Cable entry thread : NPT3/4, M25*1.5, G3/4 (optional) , E27 lamp holder
* Can be used in hazardous area which includes combustible and dust gas, such as chemical engineering, oil refinery, food processing, oil exploitation, offshore oil platform, tanker, tunnel pipe gallery, military industry, spaceflight , pharmacy, metallurgy, mineral products and etc.
