Explosion-proof LED Lighting Fixture MAML-02D

Explosion-proof LED Lighting Fixture MAML-02D

* Power: 30W,40W,50W,60W,80W

* Cable entry thread: NPT3/4, M25*1.5

Explosion-proof LED Lighting Fixture Types

Pendant pde type

Hook type

Ceiling type

Ring type

Bracket type

Fence type

Pole type

Wall type 90°

Wall type

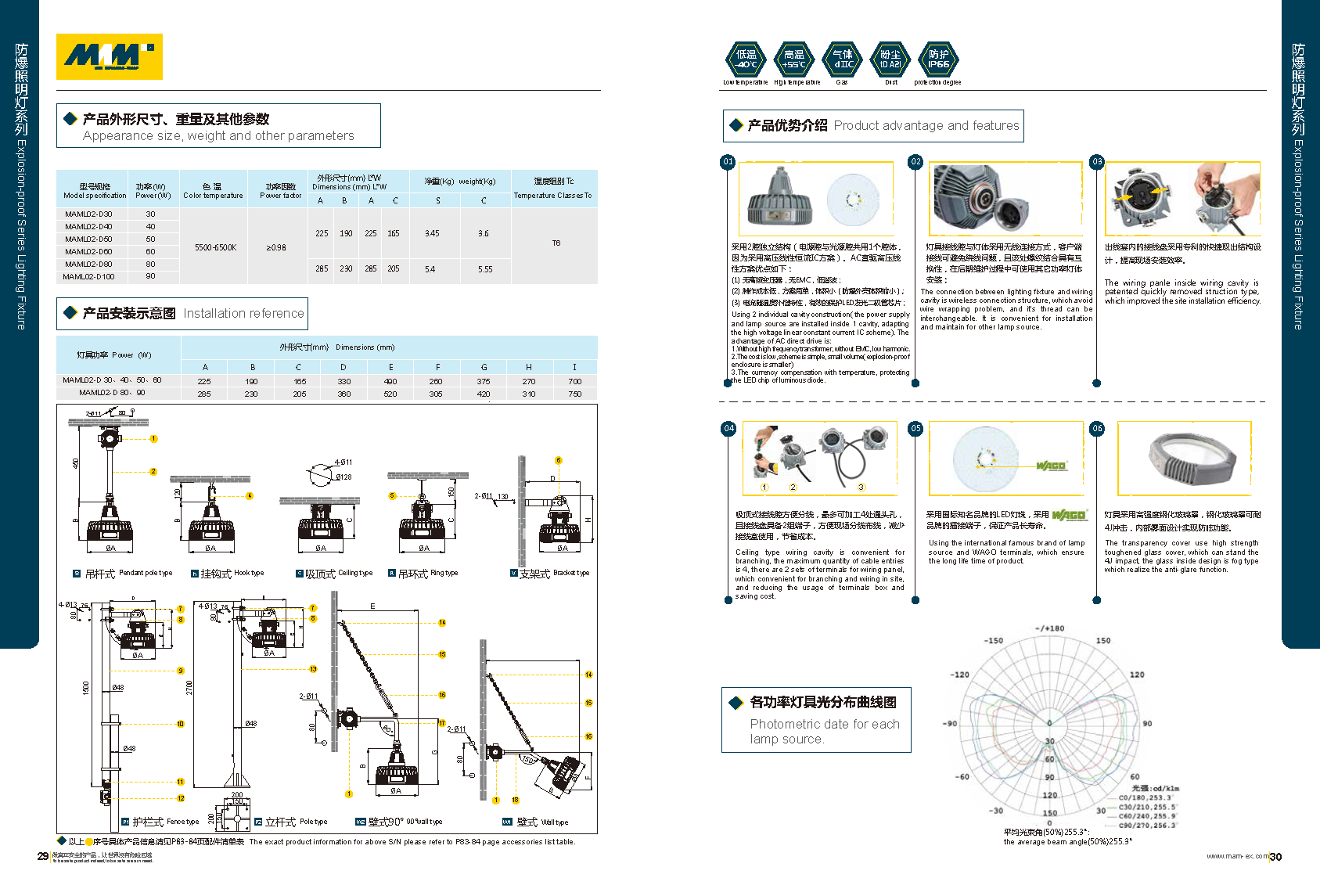

Product Advantage and Features

1. Adopt 2-cavity independent structure (power cavity and light cavity share 1 cavity, because high-voltage linear constant current IC solution is adopted). The advantages of AC direct drive high-voltage linear solution are as follows:

● No high-frequency transformer, no EMC, low harmonic

● Low production cost, simple solution, small size (explosion-proof shell size is reduced)

● Current temperature compensation characteristics, effectively protect LED light-emitting diode chips.

2. The lamp wiring cavity and the lamp body adopt wireless connection, the client wiring can avoid winding problems, and the thread combination at this place is interchangeable, and other power lamp bodies can be used for installation during later maintenance.

3. The wiring tray in the outlet sleeve adopts a patented quick-removal structure design to improve on-site installation efficiency.

4. The ceiling-mounted wiring cavity is convenient for wiring, and up to 4 through-holes can be processed, and the wiring tray has 2 sets of terminals, which is convenient for on-site wiring, reducing the use of wiring boxes and saving costs.

The LED lamp beads and plug-in terminals of internationally renowned brands are adopted to ensure the long life of the product.

The lamp adopts high-strength tempered glass cover, which can withstand 4J impact, and the internal matte design realizes anti-glare function.
