Types of Explosion-Proof Panels: A Comprehensive Guide

Explosion-proof panels are essential safety components used in industries such as chemical processing, oil and gas, mining, and manufacturing, where the risk of explosions is high due to flammable gases, vapors, or dust. These panels are specifically designed to prevent explosions or mitigate their effects, protecting both equipment and personnel. In this article, we’ll delve into the different types of explosion-proof panels, their features, and their applications.

1. Flameproof Panels

Flameproof panels are the most commonly used type of explosion-proof panels. These panels are designed to contain an internal explosion, preventing it from igniting the surrounding atmosphere. They are made from durable, robust materials that can withstand high-pressure explosions and dissipate heat effectively.

Features: Flameproof panels are typically constructed from steel or aluminum alloys and are sealed to prevent gases or vapors from entering. They are designed with a joint system that ensures the explosion is contained within the enclosure, with any hot gases being expelled through an external path.

Applications: Flameproof panels are widely used in environments where combustible gases or vapors are present, such as in chemical plants, oil refineries, and gas stations. These panels are often used for control cabinets, motor housings, and junction boxes.

2. Intrinsically Safe Panels

Intrinsically safe panels are designed to ensure that electrical and electronic equipment cannot release enough energy to cause ignition in a hazardous environment. These panels limit the amount of electrical energy used by circuits, making them incapable of igniting flammable substances, even in the event of a fault or short circuit.

Features: These panels use special circuit designs and components that are energy-limited. They typically have built-in fuses or resistors that limit the current or voltage to safe levels. Intrinsically safe panels are often paired with barriers or isolators to ensure that any energy entering the hazardous area is below the threshold that could cause ignition.

Applications: Intrinsically safe panels are commonly used in industries where electronic equipment is necessary, such as in control systems, sensors, and communications equipment in oil and gas fields, pharmaceutical manufacturing, and underground mining operations.

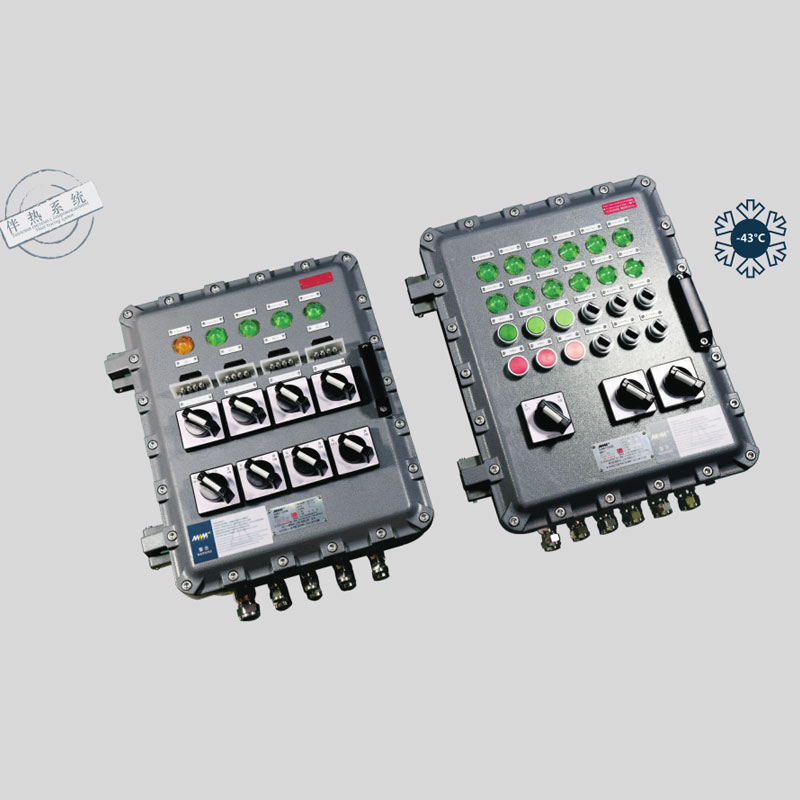

Explosion-Proof Distribution Panel

3. Pressurized Panels

Pressurized panels are designed to create a barrier between hazardous materials and sensitive equipment by maintaining a positive pressure inside the panel. This pressure prevents the ingress of flammable gases or dust, ensuring that the internal environment remains safe.

Features: These panels work by continuously supplying clean, filtered air into the enclosure, which is pressurized to a level that keeps hazardous materials from entering. The pressure is maintained using a blower or air compressor system, and any potential leaks are monitored and controlled.

Applications: Pressurized panels are ideal for use in environments where dust or volatile gases are present, such as in coal mines, grain silos, or paint factories. They are typically used for control panels, electrical enclosures, and instrumentation that must remain free of flammable materials.

4. Explosion-Relief Panels

Explosion-relief panels are designed to relieve the pressure generated by an internal explosion, thereby preventing the panel from bursting or causing further damage. These panels are equipped with pressure relief vents that allow gas and debris to escape safely, reducing the risk of harm to personnel and equipment.

Features: Explosion-relief panels are typically lightweight and designed with specific burst pressure ratings. They are made from materials that can withstand high internal pressure but will open or rupture when the pressure exceeds a safe threshold. These panels often feature reinforced edges and seals to ensure that the explosion is vented safely without compromising the integrity of the surrounding structure.

Applications: These panels are commonly used in environments where dust or gas explosions may occur, such as in dust collection systems, ventilation systems, and chemical processing units. They are often found in silos, conveyors, and processing units that handle volatile materials.

5. Explosion-Proof Glass Panels

Explosion-proof glass panels are a specialized type of panel that offers both protection against explosions and visibility. These panels are made from reinforced glass or composite materials designed to resist the impact of an explosion while still allowing light to pass through.

Features: Explosion-proof glass panels are made from laminated or tempered glass, which is designed to withstand extreme pressure without shattering. The glass is typically treated with additional layers of protection, such as coatings or films, to increase its resistance to shock and heat. They are also equipped with secure framing systems to keep the glass intact during an explosion.

Applications: These panels are commonly used in hazardous environments where operators need to observe the internal processes without compromising safety. They are often installed in control rooms, monitoring systems, and machinery enclosures in industries like oil and gas, pharmaceuticals, and food processing.

Explosion-Proof Panel

6. Watertight Explosion-Proof Panels

In environments where water or moisture is a concern, watertight explosion-proof panels offer additional protection by preventing the ingress of water along with hazardous substances. These panels are designed to maintain their explosion-proof integrity even when exposed to wet conditions.

Features: These panels use special seals and gaskets to ensure that water does not enter the panel enclosure. They are typically used in offshore oil rigs, marine environments, and other outdoor installations where exposure to rain or splashing water is common.

Applications: Watertight explosion-proof panels are crucial in locations like offshore platforms, shipyards, and flood-prone industrial areas.

Conclusion

Explosion-proof panels are a critical part of ensuring safety in hazardous environments, protecting both personnel and equipment from the dangers of explosions. Understanding the various types—flameproof, intrinsically safe, pressurized, explosion-relief, explosion-proof glass, and watertight panels—allows businesses to select the right type based on their unique operational risks. Proper installation and regular maintenance of explosion-proof panels are essential to maintaining safety standards and minimizing the risks associated with volatile environments.
