What is the IP Rating for Explosion-Proof?

In hazardous environments, where the presence of flammable gases, vapors, dust, or fibers can pose significant risks, it is crucial to use equipment designed to prevent explosions. Explosion-proof equipment, such as terminal boxes and enclosures, is built to withstand and contain potential explosions, ensuring safety and reliability. A key aspect of this equipment is its Ingress Protection (IP) rating. Understanding the IP rating for explosion-proof devices is essential for selecting the right equipment for your needs.

Understanding IP Ratings

IP ratings, or Ingress Protection ratings, are a standard set by the International Electrotechnical Commission (IEC) to classify the degree of protection provided by an enclosure against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water. The IP rating is composed of two digits:

1. First Digit (Solids Protection): This digit indicates the level of protection against solid objects and dust. It ranges from 0 (no protection) to 6 (complete protection against dust).

2. Second Digit (Liquids Protection): This digit indicates the level of protection against water ingress. It ranges from 0 (no protection) to 9K (protection against powerful high-temperature water jets).

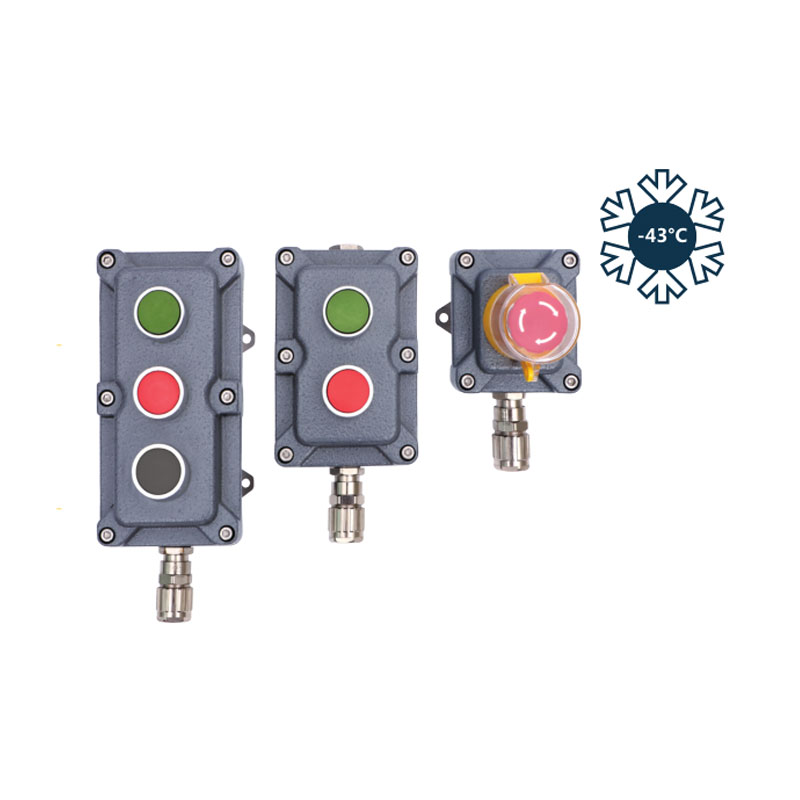

Aluminum Alloy Explosion-proof Local Control Station

IP Ratings Commonly Used for Explosion-Proof Equipment

For explosion-proof equipment, high levels of protection against both dust and water are essential to ensure the integrity and safety of the enclosure. Common IP ratings for explosion-proof devices include:

1. IP65: Provides complete protection against dust ingress and protection against water jets from any direction.

2. IP66: Provides complete protection against dust ingress and protection against powerful water jets from any direction.

3. IP67: Provides complete protection against dust ingress and protection against immersion in water up to 1 meter deep for 30 minutes.

4. IP68: Provides complete protection against dust ingress and protection against continuous immersion in water under conditions specified by the manufacturer.

Explosion-Proof Standards and Certifications

In addition to IP ratings, explosion-proof equipment must comply with specific standards and certifications to ensure safety in hazardous environments. These standards vary by region and industry, but some of the most common include:

1. ATEX (Europe): The ATEX directive regulates equipment used in explosive atmospheres within the European Union. It specifies two categories of equipment: Category 1 for use in zones with a very high risk of explosions and Category 2 for zones with a high risk of explosions.

2. NEC (United States): The National Electrical Code (NEC) provides guidelines for electrical installations in hazardous locations in the United States. It classifies hazardous locations into three classes (I, II, III) and two divisions (1, 2), based on the nature and likelihood of explosive materials being present.

3. IECEx (International): The IECEx system is an international certification scheme that ensures equipment used in explosive atmospheres complies with IEC standards. It provides a globally recognized certification process for manufacturers and users of explosion-proof equipment.

Importance of Choosing the Right IP Rating

Selecting the right IP rating for explosion-proof equipment is critical to ensuring safety and reliability in hazardous environments. Here are some factors to consider when choosing the appropriate IP rating:

1. Environmental Conditions: Assess the specific environmental conditions where the equipment will be used, including the presence of dust, water, and other contaminants. Choose an IP rating that provides adequate protection against these elements.

2. Industry Standards: Ensure that the equipment meets the relevant industry standards and certifications, such as ATEX, NEC, or IECEx. Compliance with these standards ensures that the equipment is designed and tested for use in hazardous locations.

3. Application Requirements: Consider the specific application requirements and the level of protection needed for the equipment. For example, equipment used in outdoor environments may require a higher IP rating to protect against dust and water ingress.

4. Manufacturer Specifications: Refer to the manufacturer's specifications and recommendations for the equipment. Manufacturers provide detailed information on the IP rating, certification, and intended use of their products.

FAQs about IP Ratings and Explosion-Proof Equipment

Q: What is the highest IP rating for explosion-proof equipment?

A: The highest IP rating commonly used for explosion-proof equipment is IP68, which provides complete protection against dust and continuous immersion in water under specified conditions. However, the exact level of protection needed depends on the specific application and environmental conditions.

Q: How do I determine the IP rating I need for my explosion-proof equipment?

A: Assess the environmental conditions, industry standards, application requirements, and manufacturer specifications to determine the appropriate IP rating. Consult with experts or manufacturers to ensure you choose the right level of protection.

Q: Can explosion-proof equipment have different IP ratings?

A: Yes, explosion-proof equipment can have different IP ratings based on the level of protection needed for different environments and applications. It's essential to choose the IP rating that matches the specific requirements of your use case.

Q: What other factors should I consider besides IP ratings for explosion-proof equipment?

A: Besides IP ratings, consider factors such as compliance with relevant standards (ATEX, NEC, IECEx), the material and construction of the equipment, maintenance requirements, and overall durability. Ensure that the equipment is designed and tested for use in hazardous locations.

Conclusion

Understanding the IP rating for explosion-proof equipment is crucial for ensuring safety and reliability in hazardous environments. IP ratings provide valuable information about the level of protection against dust and water ingress, helping you select the right equipment for your needs. Additionally, compliance with standards and certifications such as ATEX, NEC, and IECEx ensures that the equipment is designed and tested for use in explosive atmospheres. By carefully considering the IP rating and other relevant factors, you can make informed decisions that enhance safety and operational efficiency in your facility.
