When to Use Intrinsically Safe vs. Explosion-Proof Equipment?

In industries where hazardous materials and explosive atmospheres are present, safety is a top priority. To ensure protection for workers and equipment, it's essential to understand the difference between intrinsically safe and explosion-proof equipment. Both types of equipment are designed to prevent accidents in dangerous environments, but they operate in different ways and are used in different scenarios. This guide will help you understand when to use intrinsically safe vs. explosion-proof equipment and how to choose the right solution for your application.

What is Intrinsically Safe Equipment?

Intrinsically safe equipment is designed to prevent any sparks, electrical arcs, or heat that could ignite hazardous gases or dust in explosive atmospheres. This type of equipment is built to operate at lower energy levels than conventional devices, ensuring that it cannot generate enough heat or electrical discharge to trigger an explosion, even if it comes into direct contact with hazardous substances. Intrinsically safe equipment is typically used in environments where the risk of an explosion is low or where safety measures such as strict maintenance protocols are in place.

Common examples of intrinsically safe equipment include sensors, mobile devices, and circuit boards, all of which are specifically engineered to meet the required safety standards for hazardous areas. These devices are often used in environments like oil rigs, chemical plants, and refineries, where there is the potential for flammable gases and vapors to be present.

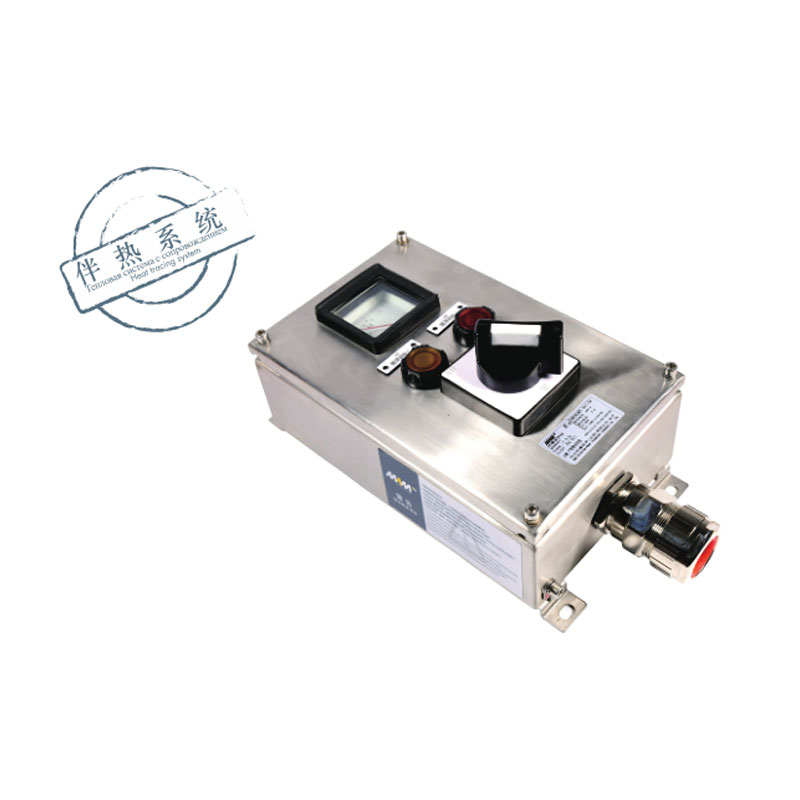

Stainless Steel Explosion-proof Local Control Station

What is Explosion-Proof Equipment?

Explosion-proof equipment, also known as "flameproof," is designed to contain an explosion within the equipment itself, preventing it from escaping into the surrounding environment. Explosion-proof enclosures are built to withstand the pressure of an explosion and to redirect any flames or gases that might escape, ensuring that no hazardous materials come in contact with the surrounding atmosphere. This type of equipment is typically used in high-risk environments where explosive gases or dust are consistently present and the risk of ignition is high.

Examples of explosion-proof equipment include motors, electrical panels, and lighting fixtures, all of which are housed in rugged enclosures capable of withstanding extreme conditions. This equipment is most commonly used in places such as petrochemical plants, mining operations, and areas with volatile chemical processes.

Key Differences Between Intrinsically Safe and Explosion-Proof Equipment

While both intrinsically safe and explosion-proof equipment are designed for use in hazardous environments, they differ in how they mitigate the risk of explosion. The key differences include:

• Design Philosophy: Intrinsically safe equipment minimizes energy output to prevent ignition, while explosion-proof equipment contains an explosion should it occur.

• Application: Intrinsically safe equipment is typically used in environments where the risk of explosion is moderate or lower, while explosion-proof equipment is used in areas with a higher, more consistent risk of explosion.

• Cost: Explosion-proof equipment is usually more expensive due to the robust materials and design required for containment. Intrinsically safe equipment, while still specialized, tends to be more affordable.

• Maintenance and Lifespan: Intrinsically safe equipment is often easier to maintain and has a longer operational lifespan compared to explosion-proof equipment, which requires more frequent maintenance to ensure its integrity.

• Certifications and Standards: Both types of equipment must meet rigorous safety standards (such as ATEX, IECEx, or UL certifications). However, explosion-proof equipment typically has more stringent requirements due to its ability to withstand and contain an explosion.

When to Use Intrinsically Safe Equipment？

Intrinsically safe equipment is best suited for environments where the presence of hazardous gases or dust is infrequent or low-level, and the risk of ignition is minimal. It is ideal for environments where electrical equipment might be exposed to volatile substances but where the level of risk does not warrant the need for explosion-proof equipment.

Some common scenarios where intrinsically safe equipment is used include:

• Oil and Gas Exploration: Intrinsically safe sensors, communication devices, and monitoring equipment can be used in non-explosive zones on oil rigs.

• Laboratories: Equipment used in laboratories handling flammable chemicals or gases can often benefit from intrinsically safe designs, especially when working in smaller quantities of hazardous materials.

• Pharmaceutical Manufacturing: Intrinsically safe equipment is often employed in pharmaceutical plants where dust or vapors are present but controlled at low levels.

• Mining: Intrinsically safe tools can be used in non-hazardous mining environments to protect against potential ignition sources in underground operations.

When to Use Explosion-Proof Equipment？

Explosion-proof equipment is necessary in areas where explosive gases or dust are present in hazardous concentrations, creating a high risk of ignition. These environments require equipment designed to withstand an explosion and prevent it from affecting the surrounding area. Explosion-proof equipment is often used in areas where explosive hazards are continuously present, or where equipment failure could lead to catastrophic consequences.

Common situations where explosion-proof equipment is required include:

• Chemical Plants: Explosion-proof motors, lights, and control panels are crucial in chemical processing plants where volatile chemicals and solvents are used in high concentrations.

• Petrochemical Industry: Refineries and oil storage facilities frequently use explosion-proof equipment to protect against the risk of fire and explosion in areas where gases like methane or propane are commonly present.

• Mining Operations: In areas where explosive gases like methane are a constant risk, explosion-proof equipment is used to safeguard miners and machinery.

• Flammable Liquid Storage: Explosion-proof pumps, lighting, and ventilation systems are used in facilities that store flammable liquids to prevent sparks and ignition.

How to Choose Between Intrinsically Safe and Explosion-Proof Equipment？

Choosing between intrinsically safe and explosion-proof equipment depends on several factors, including the level of risk in the environment, the type of materials being handled, and the nature of the equipment’s usage. Here are some questions to consider when making your decision:

• What is the likelihood of an explosion? If explosions are a rare occurrence and are manageable with low-energy equipment, intrinsically safe equipment may be sufficient. For continuous or high-risk environments, explosion-proof equipment is necessary.

• What is the environment like? If the environment is highly explosive or involves volatile chemicals and gases, explosion-proof equipment is essential for safety. For less hazardous areas with occasional risks, intrinsically safe equipment can provide adequate protection.

• What is the cost and maintenance budget? Explosion-proof equipment is generally more expensive and requires more maintenance, so if budget constraints are a concern, intrinsically safe equipment may be the better choice.

• What are the regulatory requirements? Consider the safety regulations for your industry. Some applications may mandate explosion-proof equipment regardless of the level of risk.

Conclusion

Choosing between intrinsically safe and explosion-proof equipment depends largely on the specific hazards present in your work environment. Intrinsically safe equipment is typically more affordable and easier to maintain, making it a great choice for lower-risk areas. Explosion-proof equipment, on the other hand, is designed for high-risk environments where the potential for an explosion is constant. Understanding the differences and knowing when to use each type of equipment will help ensure the safety of your workers and the protection of your assets.
